Printable Roof Pitch Chart Roof Pitch Chart The roof s pitch is its vertical rise divided by its horizontal span or run what is called slope in geometry and stair construction or the tangent function in trigonometry
This measurement will tell you the number of inches your roof rises in 12 inches of run Again to clarify this will help you determine which roof vents are right for your roof Click here to view AVP s Roof Pitch Diagram Chart See a wide range of roof pitches ranging from 0 12 to 21 12 Input Rise M in Run R in Results Pitch X 12 Angle A degrees Rafter Length L in Common Rafter Detail To determine the finished height of the Ridge Beam add the Rise M and the Y height To determine the Y height measure from the inside of the Birdsmouth up the calculated Pitch X in 12 to the top of the rafter
Printable Roof Pitch Chart
Printable Roof Pitch Chart
https://pbs.twimg.com/media/DHRJ9ZQXUAEgv_-.jpg:large

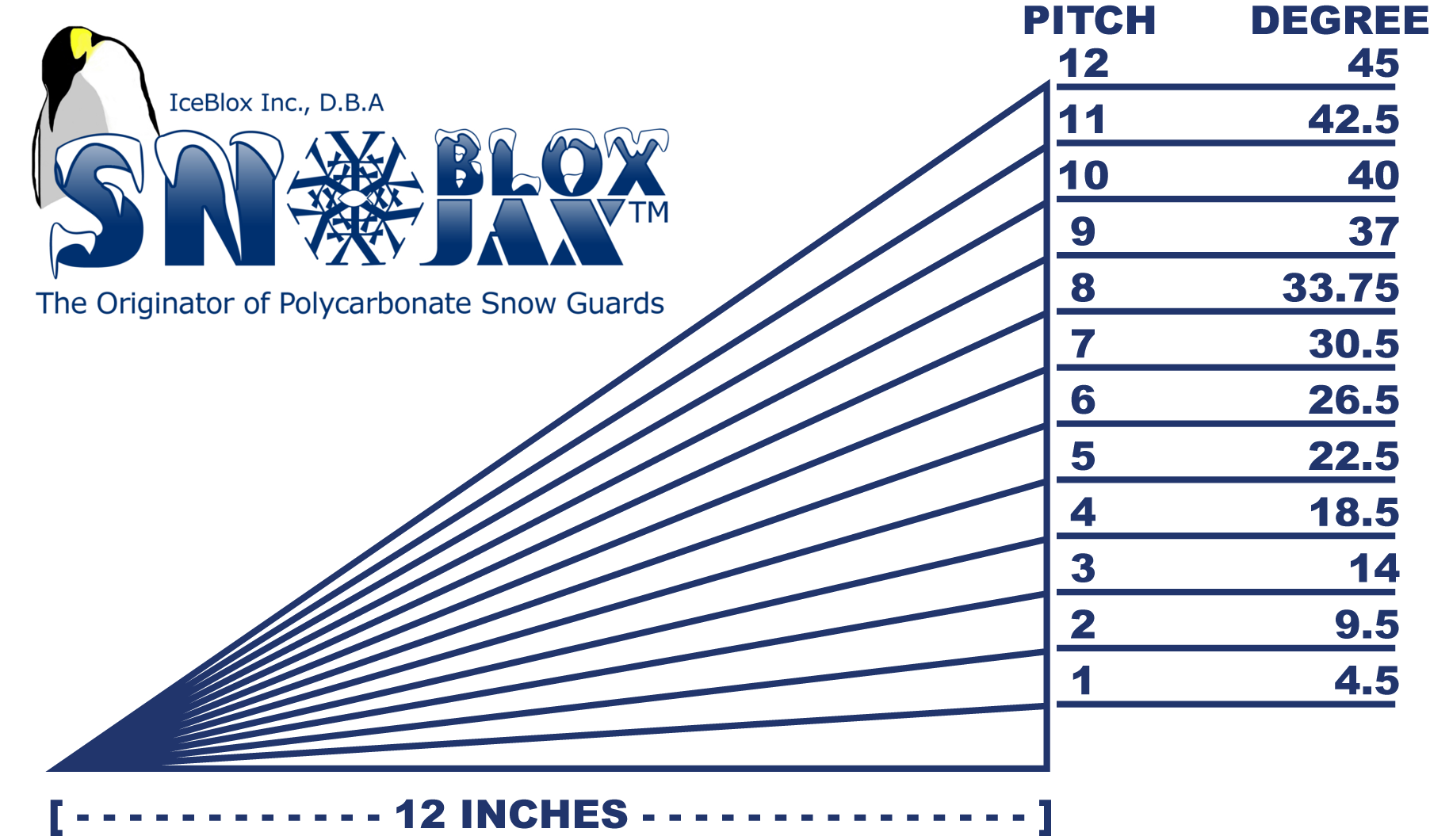

Roof Pitch Diagram Chart How to determine Roof Pitch 0 12 0 degrees 2 12 9 46 degrees 4 12 18 43 degrees 6 12 26 57 degrees 8 12 33 69 degrees 10 12 39 81 degrees 12 12 45 degrees 13 12 47 29 degrees 14 12 49 4 degrees 15 12 51 34 degrees Roof Pitch Angles Run Rise Slope Pitch Angle Pitch Rise Run Created Date 10 12 2021 9 11 58 AM
Pre-crafted templates offer a time-saving service for producing a diverse series of documents and files. These pre-designed formats and layouts can be used for various personal and expert jobs, consisting of resumes, invitations, flyers, newsletters, reports, discussions, and more, streamlining the content development procedure.
Printable Roof Pitch Chart
Free Printable Roof Pitch Chart PDF Metric for Snow
Craven Construction Roof Pitch Multiplier Craven Construction
Roof Pitch Square Foot Calculator ShamylaEzme
Roof Pitch Chart Roof Pitch Explained Roof Online
Roof Pitch In Degrees Degrees To Roof Pitch Full Charts
Roof Pitch 101 MetalBuildings
https://www.thisoldhouse.com/roofing/reviews/common-roof-pitches
The most common roof pitches for residential homes are between 4 12 and 8 12 We ll review some of those pitches below 4 12 pitch A 4 12 pitch roof has a minimum slope For example a ranch style home s roof usually has a 4 12 pitch roof 6 12 pitch A moderate pitch roof has a 6 12 pitch
https://www.typecalendar.com/roof-pitch-chart.html
The Roof Pitch Chart PDF displays common slope ratios like 4 12 6 12 8 12 etc along with rise run equivalencies percentage conversions and rafter angles Additional sections show how to calculate the roof area board feet of decking and linear feet of hip and valley rafters based on plan dimensions
https://roofonline.com/roof-pitch
Roof Pitch to Degrees Degrees to Roof Pitch Reference Charts Ways to Express Roof Slope Pitch Degrees and Percentage This article explains the various uses and aspects of roof pitch Includes a roof pitch chart that shows the relative steepness of common roof pitches
https://macchina.com/roof-pitch-chart-pdf
Quickly determine roof pitch with the free print roof pitch chart template Customize download plus have the right pitch for the work
https://www.homedepot.com/c/ah/how-to-calculate-roof-pitch/9ba683603be
1 What Is Roof Pitch Roof pitch is a measure of a roof s steepness or how much it slants upwards Determine roof pitch by dividing the roof s vertical rise from its horizontal run Calculate roof pitch of new builds by estimating the roof s vertical height and dividing it by half of the horizontal width
Need to know how to measure your roof slope and pitch Download this visual diagram chart to help you calculate the rise and span of your roof Contact Us 800 438 2920 These charts come in many various names and forms and we will look at how you can use a roof pitch conversion chart to learn about the most effective balance for your home with regard to getting the roof design right
Generally these roofs have a pitch from 1 2 12 to 2 12 from 4 2 to 16 7 Low pitched roofs have the pitch below 4 12 33 3 These are generally difficult to maintain as they require special materials to avoid leaks Conventional roofs have the pitch ranging from 4 12 to 9 12 33 3 to 75
