Printable Lens Distortion Grid 1 min read Hi all don t miss this VFX resource by Hugo s desk In this video tutorial you ll see how to film the Lens Distortion Grids how to use in Nuke and why the Lens Distortion is important for the success of good visual effect Lens Grid Download Model Timestamps below

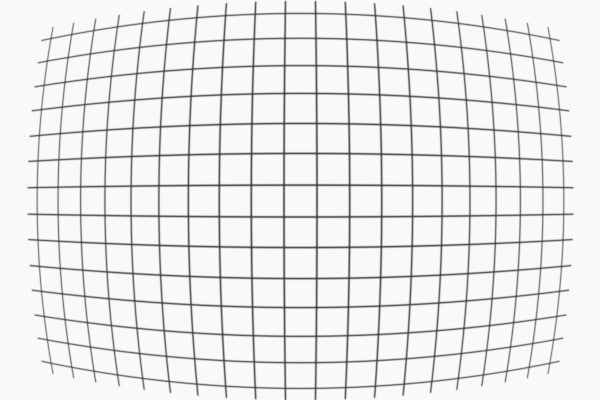

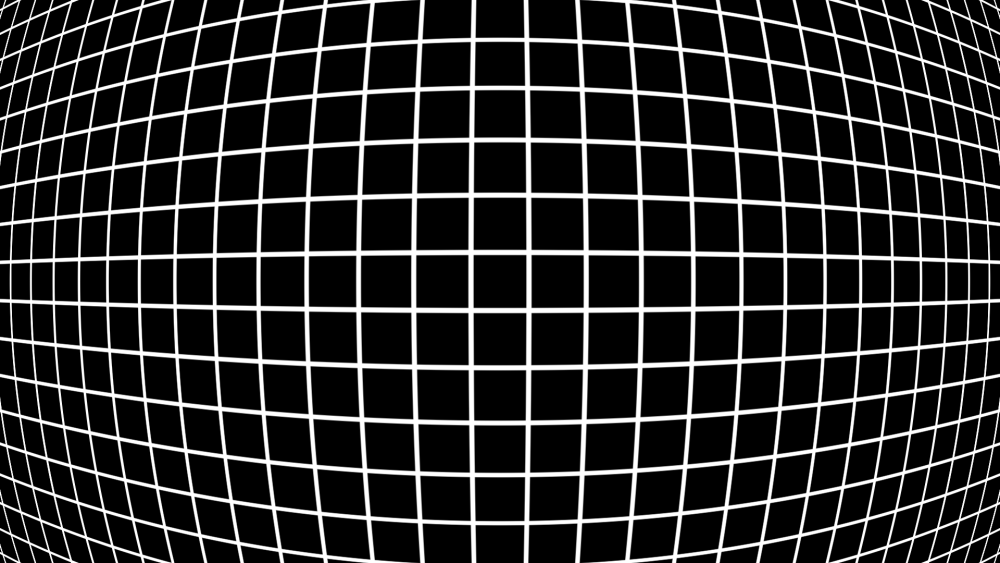

Figure 1 Image explaining the effect of barrel distortion and pincushion distortion on a square grid Based on 1 there are 3 types of distortion depending on the source of distortion radial distortion decentering distortion and thin prism distortion Share 97K views 3 years ago vfx nuke lensdistortion Timestamps below In this video we talk about why we should film Lens Distortion Grids in VFX Support Hugo s Desk by buying some

The Brown Conrady distortion model is where x d y d displaystyle x mathrm d y mathrm d is the distorted image point as projected on image plane using specified lens x u y u displaystyle x mathrm u y mathrm u

Pre-crafted templates provide a time-saving solution for creating a varied variety of documents and files. These pre-designed formats and layouts can be made use of for various individual and professional tasks, including resumes, invitations, flyers, newsletters, reports, discussions, and more, improving the content development process.

Printable Lens Distortion Grid

Lens Distortion Grid FRENDER

Lens Distortion Calibration Kinovea 0 9 5 Documentation

Replaced Camera Lens Distortion Hoolicomic

Lens Distortion Grid FRENDER

Magnetic Lens Distortion Grid

Magnetic Lens Distortion Grid

Lens Grid Guide amp Generator Sson Tech

https://www.ssontech.com/lensgrid.html
Down below you ll find our lens grid generator so you can make and print your own PDF lens grid easily There s also a script in SynthEyes that generates PNGs Shooting Guide for Lens Calibration Grids If you re going to be shooting lens grids for a project all anamorphic projects here are some tips to make it worth the time

Shooting Lens Grids CAVE Academy

https://caveacademy.com//data-acquisition-training/shooting-lens-grids

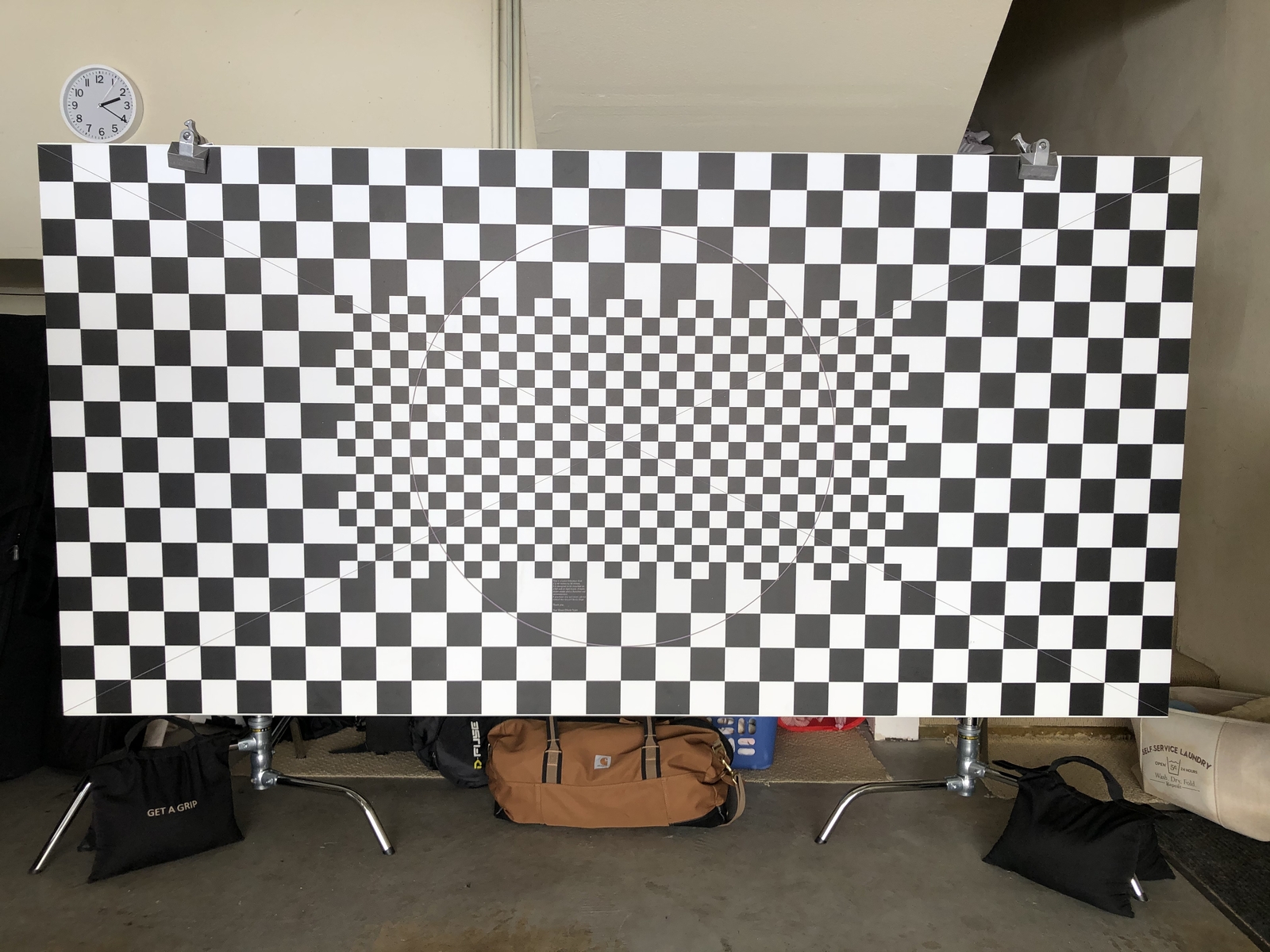

Setting up the Camera and the Lens Grid Mount the lens grid at the end of a track or on a wall and make sure it is centred It should be flat with no distortion warping etc Use an inclinometer to check the lens grid is not tilted Place the camera on a dolly and track and check that it is level

Estimating Lens Distortion Using A Grid Foundry

https://learn.foundry.com//lens_distortion/analyzing_distortion_grid.html
1 Read in your grid and connect a LensDistortion node followed by a Viewer 2 Set the LensDistortion Lens Type and Advanced Projection Model using the dropdowns in the LensDistortion Properties panel In this example the lens is Spherical and None Rectilinear but there are a number of other presets included 3

Lens Distortion Grid On Set R NukeVFX Reddit

https://www.reddit.com/r/NukeVFX/comments/v8dbys/lens_distortion_g…
Hello I have to film some shots and I need to print the lens distortion grid Is it mandstory for the size to be 2m x 1m or can it be smaller

Accurate Presets From Lens Grids Sson Tech

https://www.ssontech.com/docs/SynthEyesUM_files/Accurate_Presets_fro…
1 Print out the 36 x27 automatic lens distortion gridfrom our website Be sure to use matte paper Do not attempt to use a letter size version the camera will have to be too close or zoomed in either of which will change the distortion

If you use a background with a regular rectangular grid pattern such as the white pegboard suggested above you can use that pattern to assess the degree of distortion of the lens Notice that in the image above the holes line up in a very straight line along the edges of this image showing the lens EF 50 1 8 has very low distortion What is a lens distortion grid Lens distortion grid is a simple tool that helps VFX professionals to unwarp the image and to better stabilize motion within shots for a further VFX
