Ohms Law Pie Chart Printable Ohm s Law Ohm s Law Pie Chart Basics Glossary Ohm s Law Home Mobile Electronics Basics Ohm s Law Ohm s Law defines the relationships between P power E voltage I current and R resistance One ohm is the resistance value through which one volt will maintain a current of one ampere Current
The Ohm Law formulas above show the relationship between Voltage Amps Watts and Ohms If you know two of them you can calculate the other two P Watts The rate of energy conversion R Ohms The electrical resistance I Amps The amount of electricity passing through a point E Volts The potential electrical difference between Title PVIR 20180820 02 SR Ohms Law Pie Chart Created Date 8 20 2018 1 13 32 PM
Ohms Law Pie Chart Printable
Ohms Law Pie Chart Printable

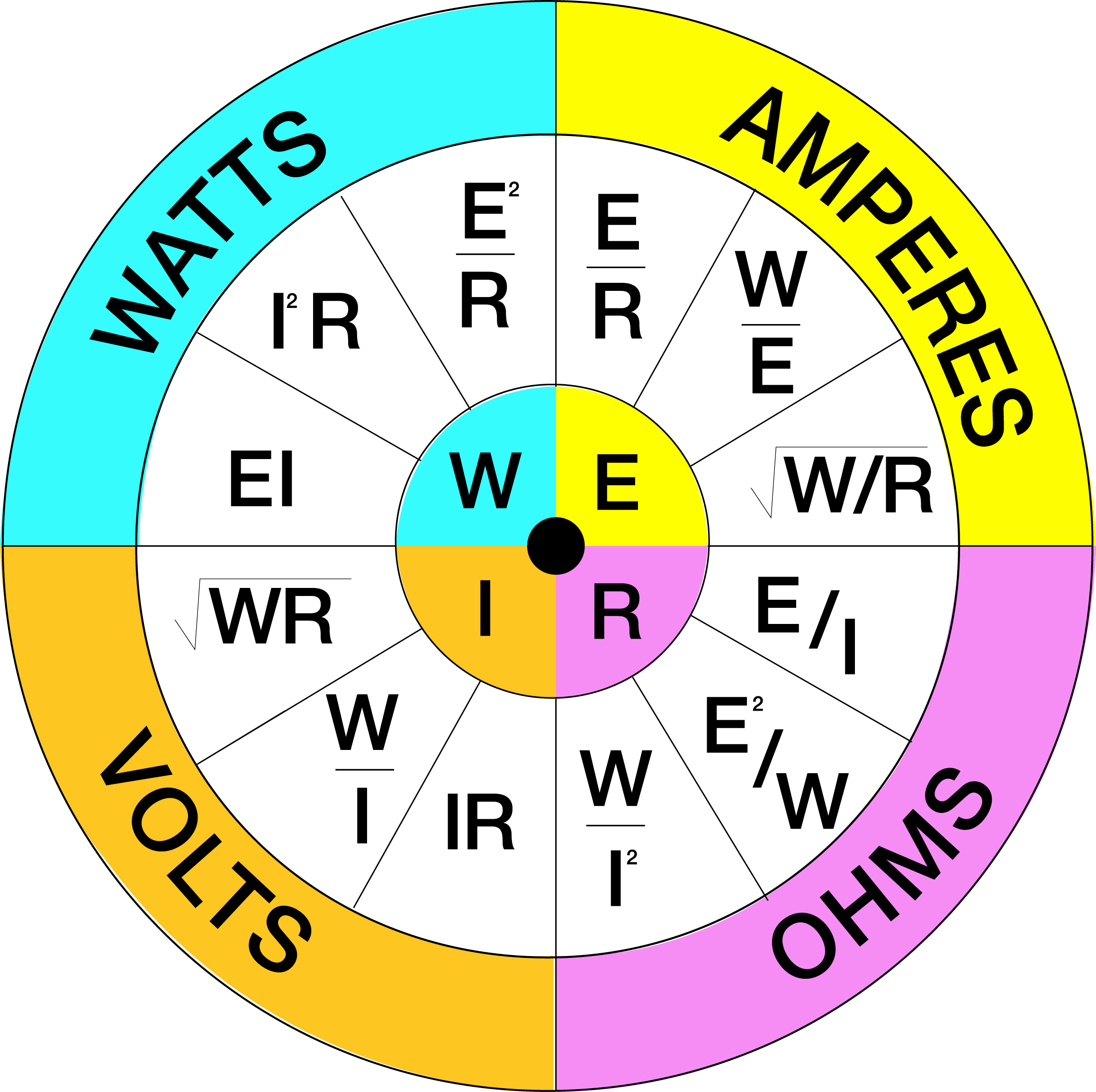

https://offgridham.com/wp-content/uploads/2022/07/1826-ohms-law_001.jpg
Ohm s law and resistance Google Classroom Gina connects a power supply providing voltage V 5 0 V across a resistor of unknown resistance With an ammeter she measures a current I 0 20 A across the resistor What is the value of the resistance R
Templates are pre-designed files or files that can be used for different purposes. They can save effort and time by offering a ready-made format and design for developing various type of content. Templates can be utilized for personal or professional jobs, such as resumes, invitations, leaflets, newsletters, reports, presentations, and more.
Ohms Law Pie Chart Printable
Ohms Law Basics Minimalis
Ohms Law Formula Wheel Minimalis
A Wheel With Four Different Types Of Electric Laws
Printable Ohms Law Wheel
Printable Ohms Law Wheel Printable Word Searches
Ohm s Law Statement Formula Derivation Applications Limitations
https://commons.wikimedia.org/wiki/File:Ohm's_Law_Pie_chart.svg
Ohm s Law Pie chart svg Size of this PNG preview of this SVG file 600 600 pixels Other
https://www.licensedelectrician.com/Store/LE/Images/UGLYOHMSLaw.pdf
OHM S LAW The rate of the flow of the current is equal to electromotive force divided by resistance I Intensity of Current Amperes E Electromotive Force Volts R Resistance Ohms P Power Watts The three I x R
http://rstengineering.com/sierra/files/ohmslaw.pdf
OHM S LAW FORMULA CHART ELECTRO MOTIVE FORCE UNIT OF MEASURE VOLTS VOLTS WATTS AMPERES VOLTS AMPERES X OHMS VOLTS WATTS X OHMS P I I R P R E VOLTS RESISTANCE UNIT OF MEASURE OHMS OHMS 2 VOLTS OHMS WATTS 2 OHMS WATTS AMPERES OHMS VOLTS
https://www.electronics-tutorials.ws/dccircuits/dcp_2.html
Ohms Law Pie Chart To help us understand the the relationship between the various values a little further we can take all of the Ohm s Law equations from above for finding Voltage Current Resistance and of course Power and condense them into a simple Ohms Law pie chart for use in AC and DC circuits and calculations as shown Ohms Law Pie
http://www.polyhardware.com/ohms-law-pie-chart
Ohm s Law Pie Chart is a great tool to make quick electric calculations see a picture It includes twelve patterns which address any mode of famous electric law Instead of searching for reference to one of these particular formulas somewhere else here you cover all the calculation approaches to Ohm s principal at this single easy to use
Combining the elements of voltage current and resistance Ohm developed the formula Where V Voltage in volts I Current in amps R Resistance in ohms This is called Ohm s law Let s say for example that we have a circuit with the potential of 1 volt a current of 1 amp and resistance of 1 ohm Using Ohm s Law we can say Ohm s Law Voltage current resistance and power can be calculated using ohm s law Below are the formulas for these calculations At a given voltage when resistance increases current decreases When resistance decreases current increases
Ohm s law says that the current between two points is directly proportional to the voltage across the two points in an electrical conductor The best way to get to know this law is to use Ohms Law PIE chart It involves a simple formula with three electrical variables voltage current and resistance
