Adjust Printable Area In Autocad Click the layout tab for which you want to set the paper size Click Output tab Plot panel Page Setup Manager In the Page Setup Manager Page Setups area select the page setup that you want to modify Click Modify In the Page Setup dialog box under Paper Size select a paper size from the list Click OK
The printable area can be increased if the paper size is changed from the standard ISO sizes to Expanded sizes this moves the printable boundary closer to the edge of the paper or if the requirement is to print as close as possible to the edge of the paper then use the Full Bleed sizes Try centering the plot or adjusting the origin but remember that printers and plotters have a built in margin around the edges Plot Scale Choose your plot scale from the drop down list A scale such as 1 4 1 0 is meant for printing to scale from the Model tab On a layout tab you normally print at a 1 1 scale
Adjust Printable Area In Autocad
Adjust Printable Area In Autocad
https://www.cad-elearning.com/wp-content/uploads/2022/07/how-to-adjust-text-frame-in-autocad.jpg
The plot offset specifies an offset of the plot area relative to the lower left corner the origin of the printable area or the edge of the paper You can offset the geometry on the paper by entering a positive or negative value in the X and Y Offset boxes
Pre-crafted templates offer a time-saving service for producing a diverse series of documents and files. These pre-designed formats and designs can be utilized for different individual and professional tasks, consisting of resumes, invites, leaflets, newsletters, reports, discussions, and more, improving the content production procedure.
Adjust Printable Area In Autocad
How To Adjust The Number Of Sheets Generated When Multiple Iso s Are
How To Adjust Printable Area In Excel
Lengthen Success Ounce How To Set Print Area In Autocad Pidgin
Lengthen Success Ounce How To Set Print Area In Autocad Pidgin

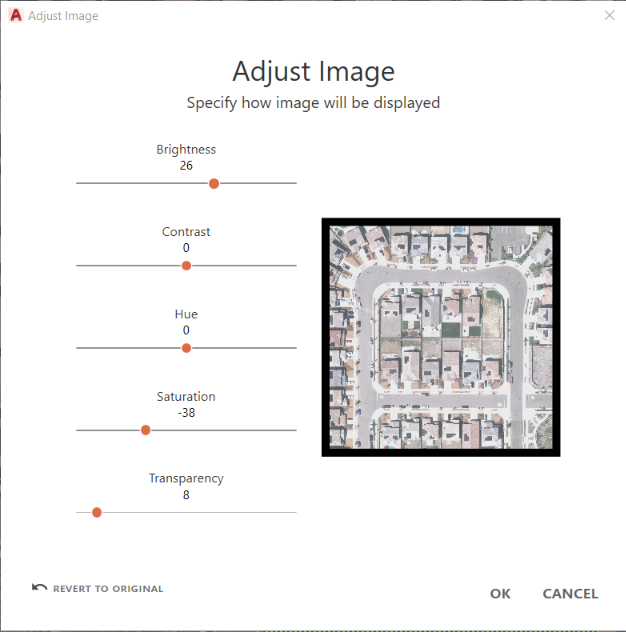

The New Plex Earth Is Here AutoCAD 2022 Support Advanced Image
Problem With Printable Area AutoCAD Drawing Management Output
https://www.cad-elearning.com/autocad/how-to-change-printable-area-in
How do you change a viewport in paper space Click a layout tab Click Layout tab Layout Viewports panel Clip Select either an existing object to designate as the new viewport boundary or specify the points of a new boundary Click OK
https://www.cad-jobs.ca/how-to-adjust-printable-area-in-autocad
How to adjust printable area in autocad How do I show print area in AutoCAD By pressing Ctl p you will go to print dialogue box There will be option for layout extent window etc so click on window and select print area in
https://help.autodesk.com/cloudhelp/2023/ENU/DWGTrueView/files/GUID-A
If your plotter reports an incorrect printable area for your paper size you can adjust the printable area in the Modify Standard Paper Sizes area under the Modify Standard Paper Sizes Printable Area option on the Device and Document Settings tab in the Plotter Configuration Editor
https://www.youtube.com/watch?v=0-lmWxBLt4Y
How to set print area in Autocad 2021 Step by step complete tutorial for beginners In this video I had explained how we can set up our drawings made in Model space to
https://www.autodesk.com/support/technical/article/caas/sfdcarticles/

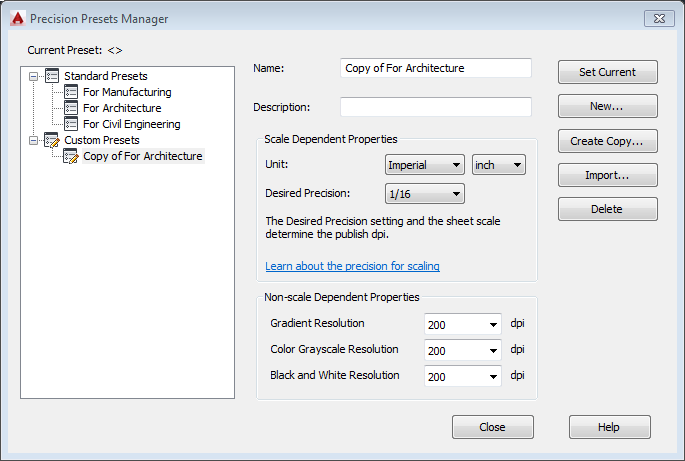

Go to Application Menu Print Plot default shortcut Ctrl P to open the Plot dialogue window In the Printer plotter section select a plotter from the drop down list Set the other plot options as needed Page size Drawing orientation Plot style table Plot offset Other plot options

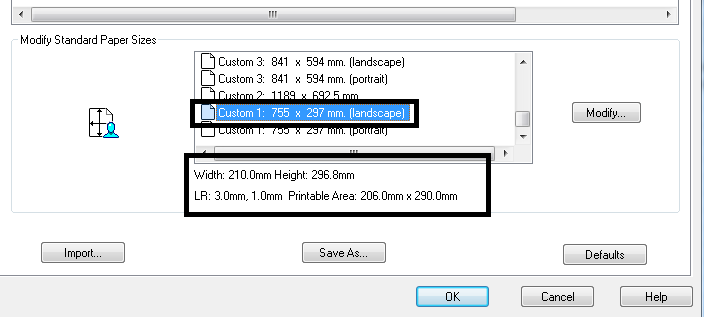

Click File Plotter Manager Double click the plotter configuration you want to modify Click Device and Document Settings tab Under User defined Paper Sizes Calibration click Modify Standard Paper Sizes Printable Area Select a paper size and click Modify kkioslaby 2 yr ago Thank you spakattak 2 yr ago Method 1 To scale objects drawing content to Reference In the drawing that is not at 1 1 scale find an object or line whose length you know Start the scaling command with SC or SCALE Make a selection for the objects that need to be included in the scaling operation Click in the drawing for the first point of the scaling base base
