3d Printable Tesla Turbine Using Dvd Disks Build a 15 000 Rpm Tesla Turbine Using Hard Drive Platters Here s a project that uses some of those dead hard drives you ve got lying around In the Tesla Turbine air steam oil or any other fluid is injected at the edge of a series of smooth parallel disks

A Tesla Disk turbine is a stack of disks think of Cd s generally 5 or more just a millimetre or so apart The disks are mounted on a shaft that can rotate and the whole thing is in a housing To make it turn jets are positioned around the edge facing the disk at an angle so the jet hits the disk at a tangent That s why in this video I ll show how I created a simple design of the Tesla Turbine that is easy to print The Are you a fan of Tesla s inventions Me too That s why in this video I ll show

I made a 3dprintable version of a Tesla Turbine I always wanted a turbine but printing flat disks is a bit akward So I designed a stack of angled disks so I could print the entire blade section in one go And I managed to create something pretty decent

Pre-crafted templates offer a time-saving solution for developing a varied variety of documents and files. These pre-designed formats and designs can be used for numerous personal and expert projects, including resumes, invites, leaflets, newsletters, reports, discussions, and more, enhancing the material production procedure.

3d Printable Tesla Turbine Using Dvd Disks

Tesla Turbine

Printable Tesla Coloring Pages Printable World Holiday

Tesla Cybertruck Paper Model Template Chris Philpot Tesla Cybertruck

3D Printable Tesla Tower Nikola Tesla Anniversary By Yvan Gelbart

3D Printable Tesla Model S Phone Charging Bay By Silo Entertainment

3d Printable Tesla Turbine

Tesla Turbine 3D Printable By Integza Thingiverse

https://www.thingiverse.com/thing:3141564
If you want an easy way of getting a physical model of the Tesla Turbine this is a great way My video on the process https youtu be bDUw91GEg7Q This design is super simple and easy to print You can print the parts with virtually any FDM printer

Designing A 3D Printed Tesla Turbine Part 1 Markforged

https://markforged.com//designing-a-3d-printed-tesla-turbine-part-1
Reimagining a Turbine with 3D Printed Parts For this project we used a Tesla Turbine design from the Olin College Machine Shop that has three core systems A shaft and rotor assembly a bearing housing and a turbine housing The shaft assembly is fully constrained by the bearing housing and contained by the turbine housing

Building And Evaluation Of A 3D Printable Tesla Turbine

https://www.instructables.com/Building-and-Evaluation-of-a-3D
Step 1 Step 1 the Design There are numerous free designs available on the internet to make a tesla turbine yourself Most of these designs require making metal parts or adapting CDs and CD housings or harddrive disks I got A design that is optimized for 3d printing Link design http www thingiverse thing 1096901 collect Ask Question

quot tesla Turbine quot 3D Models To Print Yeggi

https://www.yeggi.com/q/tesla+turbine
74 9 free Downloads 1953 tesla turbine 3D Models Every Day new 3D Models from all over the World Click to find the best Results for tesla turbine Models for your 3D Printer

Tesla Turbine 3D Printable 3D CAD Model Library GrabCAD

https://grabcad.com/library/tesla-turbine-3d-printable-1#!

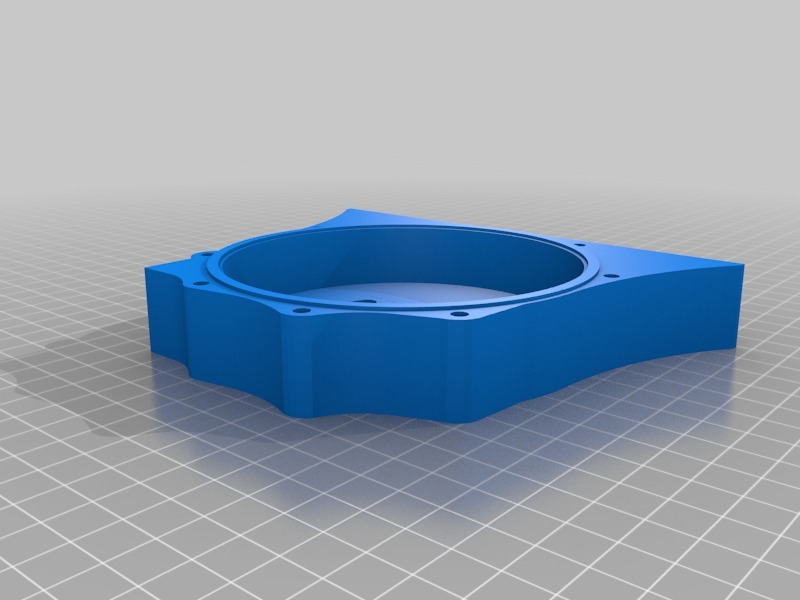

This is a simple 3d printable design for a Tesla Turbine In the folder are included The native Solidworks files The parts corresponding STL files The FFF profile I use to print PLA parts on Simplify 3D Show more Video https youtu be bDUw91GEg7Q Files Tesla Turbine 3D Printable Tesla Turbine

The compressed air is used to drive a Tesla turbine of Integza s design which is 3D printed on a resin printer Rather then driving a propeller the Tesla turbine instead turns a Lily Bioengineering researchers have referred to it as a multiple disk centrifugal pump One of Tesla s desires for implementation of this turbine was for geothermal power which was described in Our Future Motive Power Text Source https en wikipedia wiki Tesla turbine tesla

The Tesla turbine is also known as the boundary layer turbine cohesion type turbine and Prandtl layer turbine after Ludwig Prandtl because it uses the boundary layer effect and not a fluid impinging upon the blades as in a conventional turbine Bioengineering researchers have referred to it as a multiple disk centrifugal pump
